Product Description

Integrated management system

The integrated management of the thermal system and of the heat pump (HP) is implemented by means of an innovative SMART-MT regulator therein. SMART-MT is connected to the management inputs of the heat pump and “PCB-Main” to a specific PCB-Terminal Block board, where the various inputs and outputs of the parts constituting the system can be connected. SMART-MT allows you to customise residential comfort, based on the various requirements of the use of energy sources and terminal units. In addition to the normal controls concerning the operating mode and status of the HP, all parameters relating to system management algorithms can be set using SMART-MT. To complete the functions present in SMART-MT, it is possible to connect the PCB-Terminal Block with a “Crono-TH” remote control (optional accessory), which aside from controlling the temperature and humidity of the main room in the home, allows you to set periods of attenuation of environmental comfort, to activate the main states and operating modes of the HP and to provide the main SMART-MT displays.

FEBOS-HP

FEBOS- HP is an EMMETI device for residential implant monitoring which is easy and cost effective and allows the activation of the MIRAI SMI eating pump function, and the control of the relative functionalities, monitor the energetic flux and managing of the environmental comfort, directly through Tablet and Smartphone, inside and outside your home.
With FEBOS-HP all main climatisation devices at home and systems for production of Domestic hot water are constantly monitored, to maximise operating and economic efficiency, and the continuous logging of operational periods and costs.
A single instrument which measures and records the principal values necessary to monitor and assess comfort level of the house with respective costs, such as:

• Measurement of temperatures of environmental and Domestic hot water

• Thermal energy produced by the heating pump for winter/summer air conditioning

• Energy used by the heating pump

• Average daily use of the heating pump

• The activation status of the heating pump with connected components

• The energy produced by the photovoltaic system

• The energy exchanged (taken/sent) with the network

• Consumption (energy used by the house)

• Auto-consumption from eventual photovoltaic system

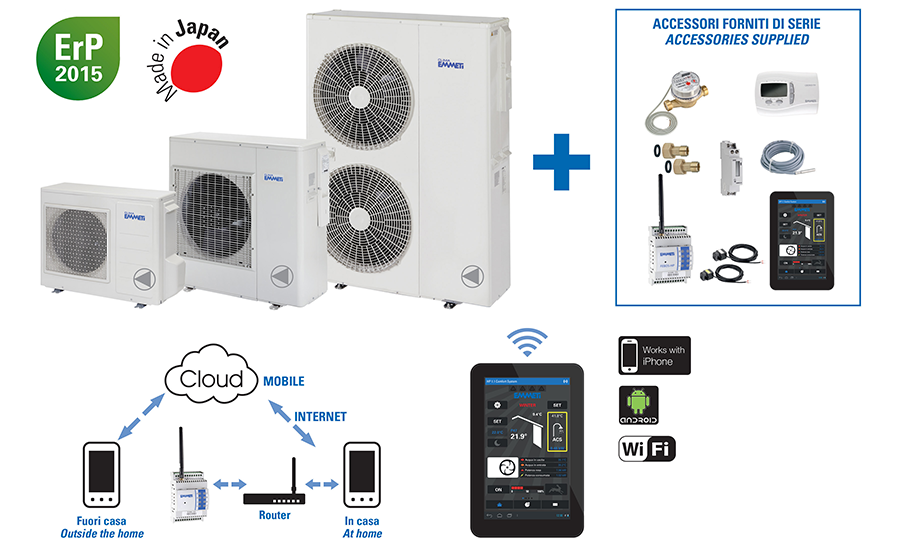

FEBOS-HP is built in the home electric switchboard, through two TAs it can measure the energy produced and the energy used/taken and it calculates the usage. The data is transferred through Wireless technology to tablet, smartphone or ADSL router, which is then sent to the MT-CLOUD. This way, the data is always updated and readable in any moment through any device and anywhere the user may be located.
